Precision Drilling
The high-frequency hydraulic rock drill bores holes from 90 to 160 mm, up to 2.5 m deep, at up to 1,000 mm per minute. Built-in dry and wet dust control keeps the work area clean.
Drill & Split Integrated Machine · ZD Series
Drill and split.
One machine.
Rotary drilling plus hydraulic splitting in a single attachment for 24-65 t excavators. Up to 30,000 t of static splitting force and 2,000 t daily output, zero explosives.
CE & ISO Certified
20+ Years Experience
Non-Explosive Static Breaking
30,000t
Max splitting force on ZD2000, two-stage supercharged
1m/min
Drilling speed on ZD1000, far beyond air drills
3min
Full cycle per hole: drill, split, reposition
2,000t
Daily output in 8 hours on ZD2000
One attachment. Two jobs.
Drill, split, and move on. Built around excavators you already own.

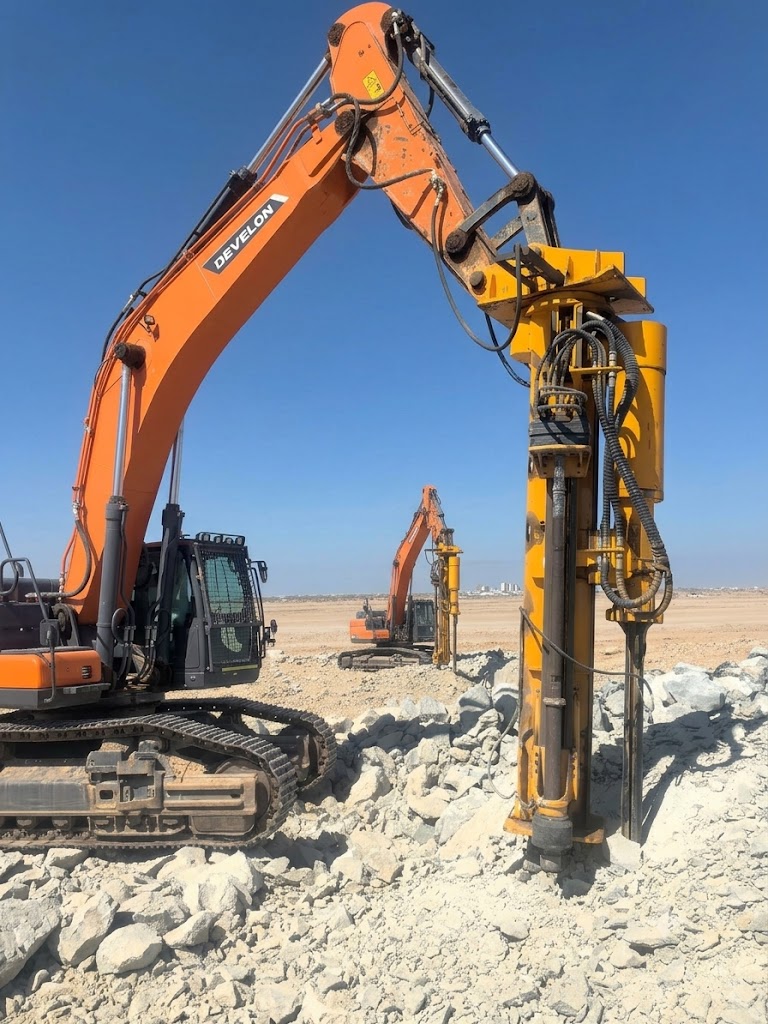

FIELD OPERATION / OPEN-PIT QUARRY
Drill + Split in One Attachment
A 120° rotating platform with side swing switches between drilling and splitting automatically. No separate drilling rig, no second machine, no lineup coordination.
Hard-Rock Class Force
Two- and three-stage hydraulic supercharging delivers up to 30,000 t of static splitting force. Granite, basalt, limestone, reinforced concrete break cleanly.
Static, Safe, Permit-Free
No explosives, no flyrock. Low vibration, 60-80 dB noise, and 95% dust capture keep sites clean and compliant next to people and infrastructure.
Non-Destructive Excavator Upgrade
Mounts on 20-65 t wheeled or tracked excavators, connects to standard breaker hydraulics, and installs or removes in about 1 hour.
From first hole to fractured rock.
Three moves, one operator, one excavator.
Hydraulic Splitting
The splitter head enters the hole and the 120° rotating platform aligns it to the free face. Multi-stage supercharging delivers up to 30,000 t of static force, cracking the rock in about 40 seconds.
Reposition & Repeat
The head rotates to the next hole instantly and the cycle restarts. Wireless remote operation keeps the operator at a safe distance; one excavator closes the full workflow.
Engineered down to the valve block.
The ZD attachment in technical detail: drilling power head, splitting cylinders, and full rotation system on one frame.
Three models. One matched to your excavator.
From 24-tonne compact carriers to 65-tonne heavy machines.
ZD1000
CompactBasic
- Matched Excavator
- 24-36 t
- Power
- 22 kW
Drilling
- Hole Diameter
- Φ89-127 mm
- Hole Depth
- 1,600 mm
- Drilling Speed
- 1 m/min
Splitting
- Splitting Force
- 12,000 t
- Splitting Depth
- 1,000 mm
- Rotation / Supercharging
- 120° / 2-stage
System
- Displacement
- 4.5 m³/min
- Exhaust Pressure
- 5-8 bar
- Filter Elements
- 5
Beam & Swing
- Drill Thrust
- 40 kN
- Split Push Force
- 80 kN
- Side Swing
- 80 kN / 1 rpm
Remote
- Digital / Analog
- 30 / 14 ch
- Anti-Interference
- > 50 dB
Machine
- Total Weight
- 4 t
- Dimensions L×W×H
- 4,140×1,500×1,570 mm
Productivity
- Drill / Split / Position
- ~2 min / ~40 s / ~50 s
- Output per Hole
- 3 m³
- Daily Output (8 h)
- 411 m³ (~1,000 t)
ZD1500
BalancedBasic
- Matched Excavator
- 36-48 t
- Power
- 30 kW
Drilling
- Hole Diameter
- Φ135 mm
- Hole Depth
- 1,900 mm
- Drilling Speed
- 0.8 m/min
Splitting
- Splitting Force
- 15,000 t
- Splitting Depth
- 1,250 mm
- Rotation / Supercharging
- 120° / 2-stage
System
- Displacement
- 10 m³/min
- Exhaust Pressure
- 5-8 bar
- Filter Elements
- 8
Beam & Swing
- Drill Thrust
- 40 kN
- Split Push Force
- 80 kN
- Side Swing
- 80 kN / 1 rpm
Remote
- Digital / Analog
- 30 / 14 ch
- Anti-Interference
- > 50 dB
Machine
- Total Weight
- 5 t
- Dimensions L×W×H
- 5,200×1,520×1,860 mm
Productivity
- Drill / Split / Position
- ~2.5 min / ~40 s / ~50 s
- Output per Hole
- 5.6 m³
- Daily Output (8 h)
- 672 m³
ZD2000
Heavy DutyBasic
- Matched Excavator
- 48-65 t
- Power
- 35 kW
Drilling
- Hole Diameter
- Φ152 mm
- Hole Depth
- 2,100 mm
- Drilling Speed
- 0.7 m/min
Splitting
- Splitting Force
- 30,000 t
- Splitting Depth
- 1,500 mm
- Rotation / Supercharging
- 120° / 3-stage (2x boost)
System
- Displacement
- 20 m³/min
- Exhaust Pressure
- 10-12 bar
- Filter Elements
- 8
Beam & Swing
- Drill Thrust
- 40 kN
- Split Push Force
- 80 kN
- Side Swing
- 80 kN / 1 rpm
Remote
- Digital / Analog
- 30 / 14 ch
- Anti-Interference
- > 50 dB
Machine
- Total Weight
- 6 t
- Dimensions L×W×H
- 5,400×1,520×1,860 mm
Productivity
- Drill / Split / Position
- ~3 min / ~40 s / ~1 min
- Output per Hole
- 9 m³
- Daily Output (8 h)
- 1,080 m³ (~2,000 t)
Full specifications, operating manual, and case studies in the product brochure.
Download BrochureOne machine. Every hard-rock job.
Static breaking works where blasting cannot, with output that keeps pace.
01
Open-Pit Mining & Quarrying
Efficient fragmentation for coal, metal ore, and dimensional stone, replacing blasting in regulated zones.
02
Tunnel & Underground
Precise rock breaking for highway tunnels, metro construction, and underground mining with no flyrock risk.
03
Urban Construction & Demolition
Foundation excavation and concrete breaking near sensitive structures with minimal vibration.
04
High-Gas Coal Mines
Safe non-explosive operation in gassy underground environments where explosives are prohibited.
05
Slope Stabilization
Controlled rock removal for highway slopes, dams, and landslide prevention projects.
06
Hydropower & Civil Works
Channel excavation and foundation preparation with controlled, predictable rock fracture.
CE & ISO
Certified
International quality standards
20+
Years
Rock breaking expertise
50+
Countries
Global export reach
1 Hr
Conversion
Mount or remove on the excavator
Frequently asked questions.
What buyers ask before switching to integrated drill-split breaking.
Will it work with my excavator?
The attachment is built for 24-65 t wheeled and tracked excavators (models ZD1000, ZD1500, ZD2000). It connects to the standard breaker hydraulic circuit, installs in about 1 hour, and switches back to bucket or breaker when the job is done.
How much splitting force does it deliver?
Up to 30,000 t of static splitting force with two- or three-stage hydraulic supercharging (ZD2000 runs 3-stage with 2x boost). Hard granites, basalts, and reinforced concrete split cleanly with controlled crack direction.
Is it safe near buildings and in gassy mines?
Yes. It is static, non-explosive rock breaking: no flyrock, no blast permits, low vibration, 60-80 dB noise, and built-in 95% dust capture. Suitable for urban sites and gassy environments where blasting is restricted.
How does it compare with a breaker hammer?
One machine replaces the drill-and-break two-stage workflow. Output is typically 3-6 times a breaker, fuel consumption is about 30% lower, the excavator frame lasts longer without hammer vibration, and only one operator is needed.
