You’ve heard CO2 rock breaking is safer than explosives. But is it right for YOUR project — and how do you choose the right equipment?

It’s a fair question. After all, switching rock-breaking methods on a live project isn’t something you do on a hunch. You need hard numbers — on safety, cost, speed, and equipment specs — before you sign off on anything.

I get it. You’re managing budgets, deadlines, and safety compliance across sites that don’t tolerate guesswork. The last thing you need is a “promising new technology” that turns into a costly experiment.

By the end of this guide, you’ll understand exactly how CO2 fracturing works, how it compares to every alternative, what equipment specs matter, and how to calculate your real ROI. No fluff. No sales pitch. Just the technical and financial clarity you need to make a confident decision.

Key Takeaways

• CO2 rock breaking uses liquid CO2’s phase-change expansion (600+ times volume) to fracture rock at pressures up to 300 MPa — without classified explosives, open flames, or toxic gases.

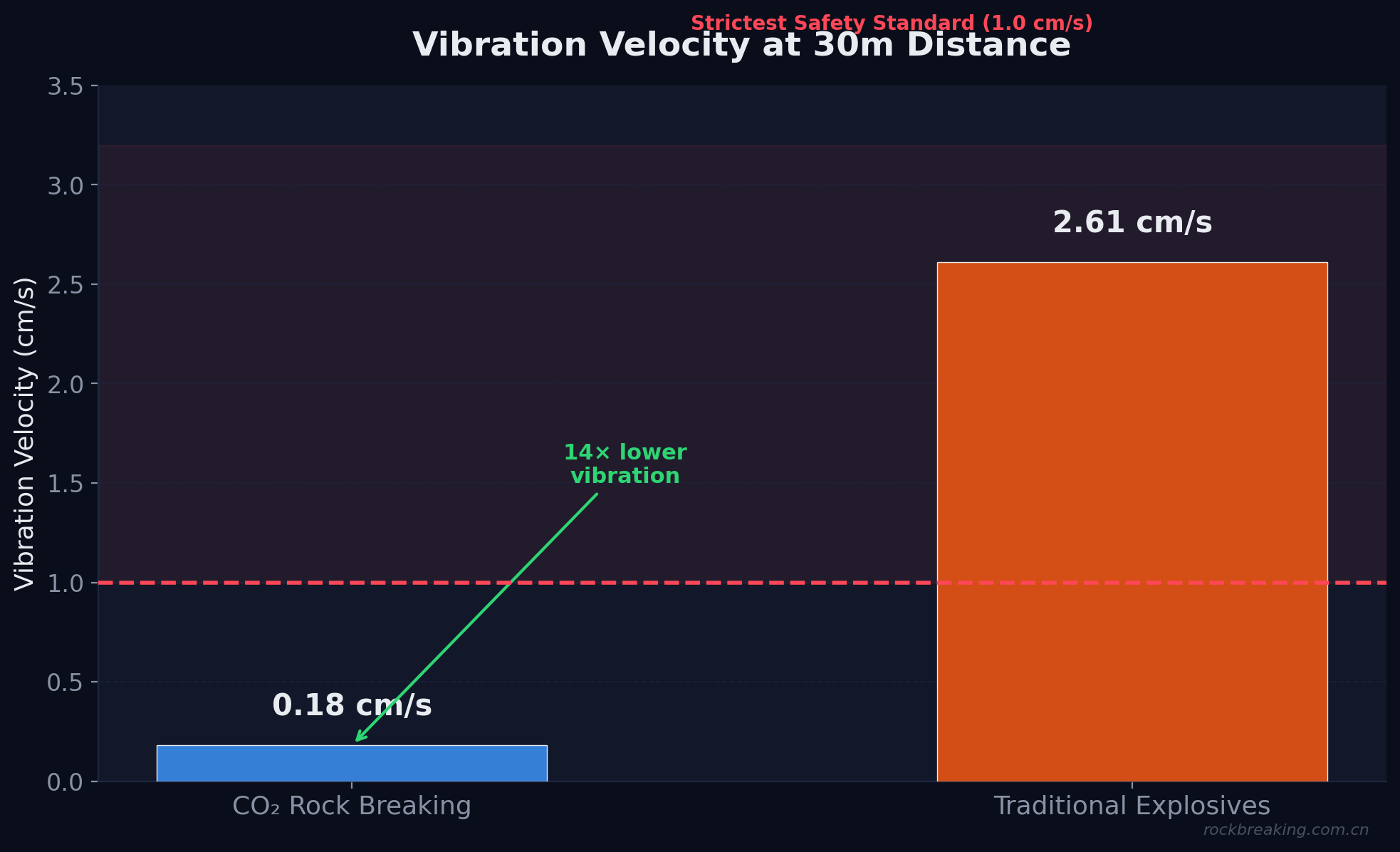

• Vibration at 30 m measures just 0.18 cm/s — only 18% of the strictest safety threshold — making it viable next to occupied buildings, railways, and gas-rich mines.
• Flyrock distance is under 5 m (vs. 50+ m with explosives), eliminating 90% of the exclusion zone and enabling work in confined urban sites.

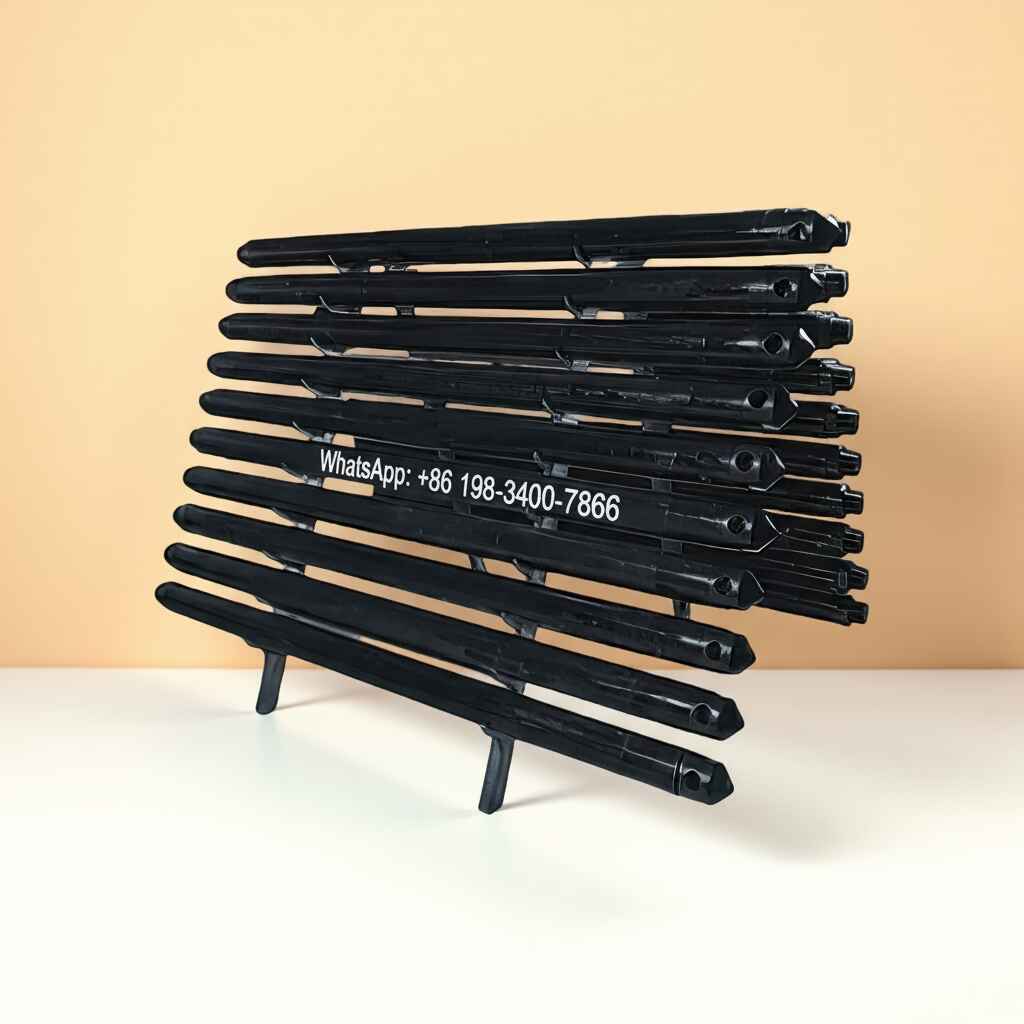

• Reusable fracturing tubes last hundreds of cycles; disposable tubes require zero blasting permits — two distinct paths depending on your regulatory environment and volume.
• The non-explosive rock-breaking market is growing at 6.5%+ CAGR, driven by tightening safety regulations across the Middle East, South America, Africa, and South Asia.

What Is CO2 Rock Breaking?

CO2 rock breaking is a non-explosive excavation method that uses liquid CO₂’s rapid phase change to generate extreme pressure inside a borehole, fracturing the surrounding rock. The industry calls it by several names — CO2 gas fracturing, CO2 phase-change blasting, gas expansion cracking — but they all describe the same physical process.

Here’s the short version. Liquid CO₂ is sealed inside a high-strength steel tube. A chemical heater triggers the phase change. The CO₂ expands over 600 times its liquid volume in 20–40 milliseconds. That generates pressures up to 300 MPa (3,000 bar) — enough to rupture a pressure-relief disc and send high-velocity gas jets into the rock. The result: controlled fracturing. No detonation. No open flame. No shock wave. No toxic byproducts.

And unlike chemical explosives, there’s no combustion reaction at all. The energy comes entirely from the physical phase change of CO₂ from liquid to supercritical gas. That process is inherently spark-free. It cannot be triggered by impact, friction, or static electricity.

In 2021, a mining crew in Colombia’s Antioquia region faced a stubborn problem. Their limestone quarry sat just 40 meters from a residential community, and local regulators had denied their blasting permit three consecutive times. Production was hemorrhaging cash. They switched to a CO2 rock breaking system. Within one week, the crew was fracturing 1500–2000 cubic meters per shift with zero community complaints and zero permit delays. The project that was nearly shut down is now in its fourth year of continuous operation.

How Does the CO2 Rock Breaking System Work?

If you’re evaluating this for procurement, you need to understand the mechanics. Here’s how the cycle runs, step by step.

Step-by-Step Process

The CO2 rock breaking operation follows a precise six-step cycle:

1

2

3

4

5

6

1. Drill the borehole. Drill a hole with a diameter of 130–140 mm to a depth of 6–8 meters, depending on the rock mass and desired fracture pattern. Hole spacing typically ranges from 1 to 2.5 meters based on rock hardness.

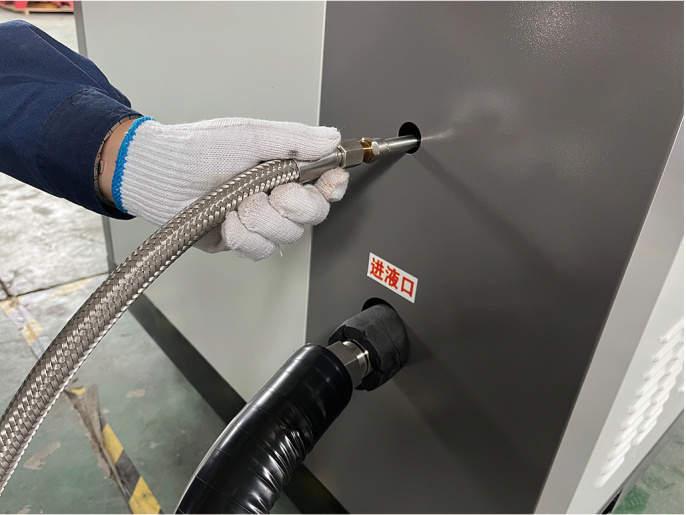

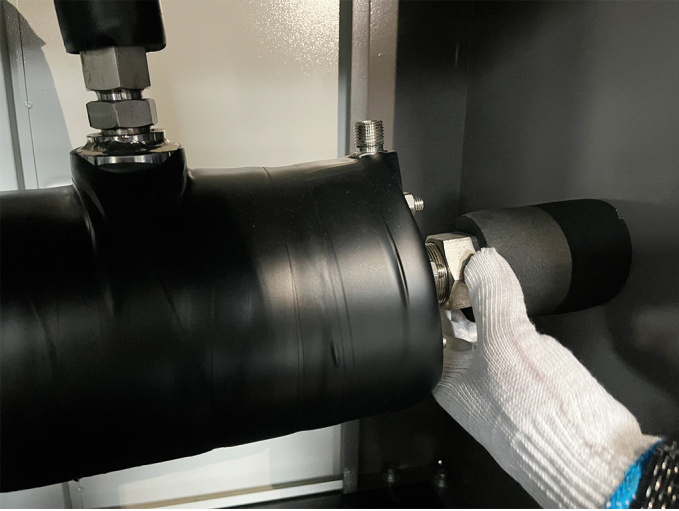

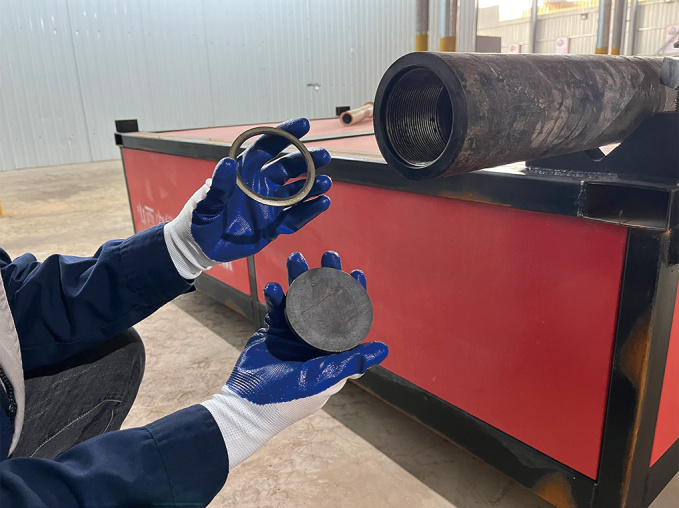

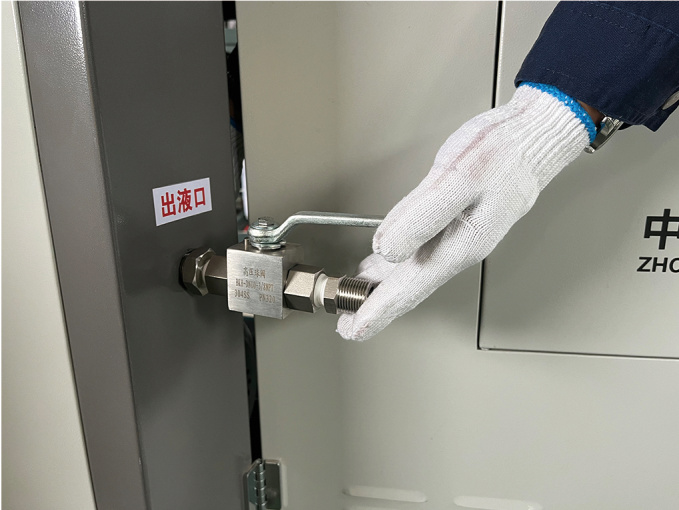

2. Charge the fracturing tube. Fill the reusable steel tube with liquid CO₂ using a dedicated charging system. A Model 108 tube holds 6–8 kg of CO₂; a Model 51 tube holds 0.6–0.8 kg.
3. Insert the tube into the borehole. Place the charged tube into the drilled hole with the release nozzle facing the target fracture direction.
4. Seal the borehole. Backfill the hole around the tube with stemming material (typically a mix of fine and coarse gravel, 1–5 mm) to contain the gas pressure and direct energy into the rock rather than back up the hole.
5. Connect the initiation system. Wire the heating element to the initiator using series or parallel connections. Confirm all resistance values are within specification (±0.5 Ω tolerance).
6. Initiate fracturing. Evacuate personnel to a safe distance (≥50 m for disposable tubes, ≥100 m for reusable systems). Apply the firing voltage. The heating element triggers the phase change, the pressure-relief disc ruptures within 20–40 milliseconds, and high-velocity gas jets fracture the rock.

The entire cycle — from drilling to completion — can be repeated every 3–5 minutes depending on your crew’s efficiency and hole pattern.

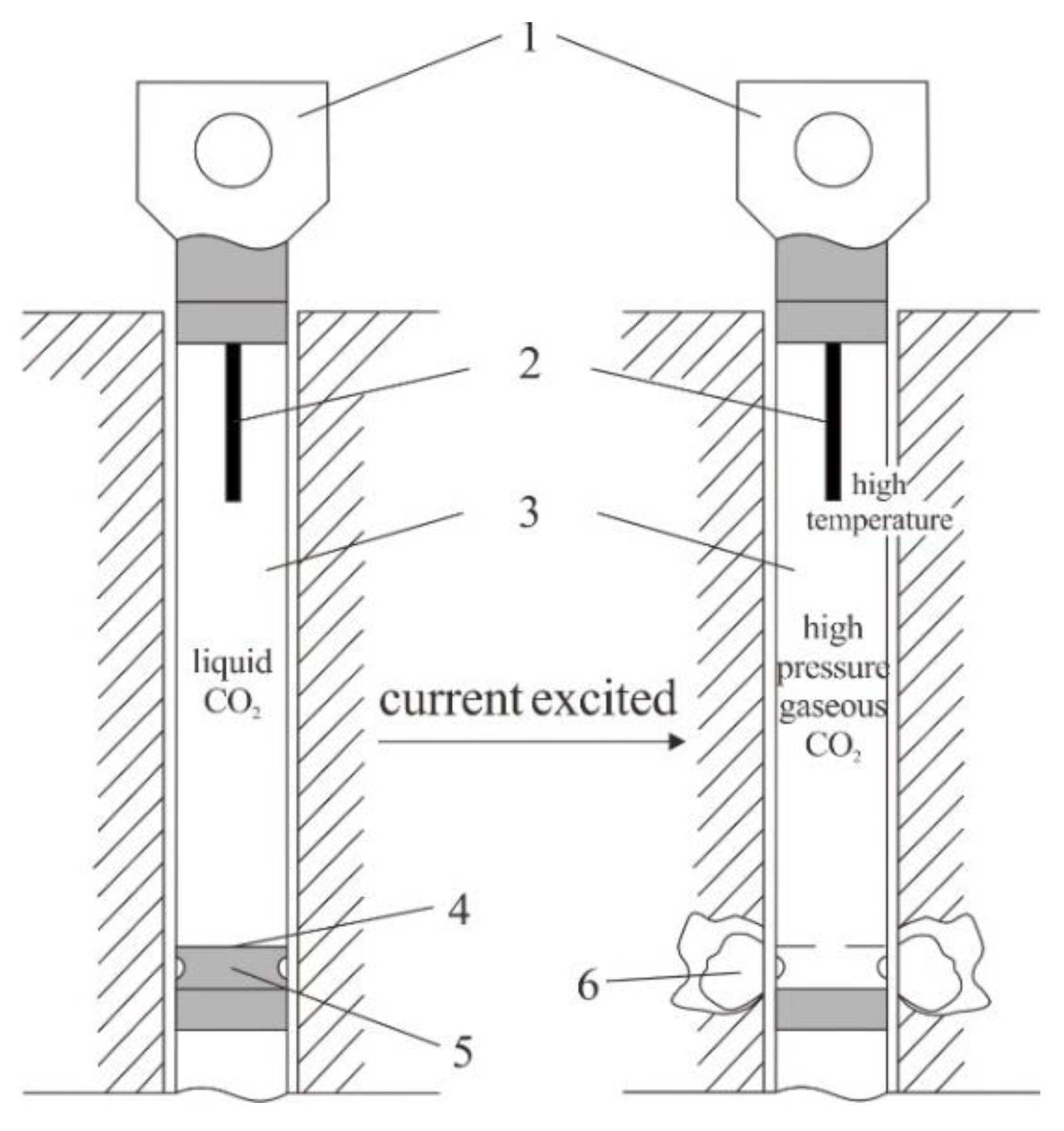

The Physics Behind CO2 Fracturing

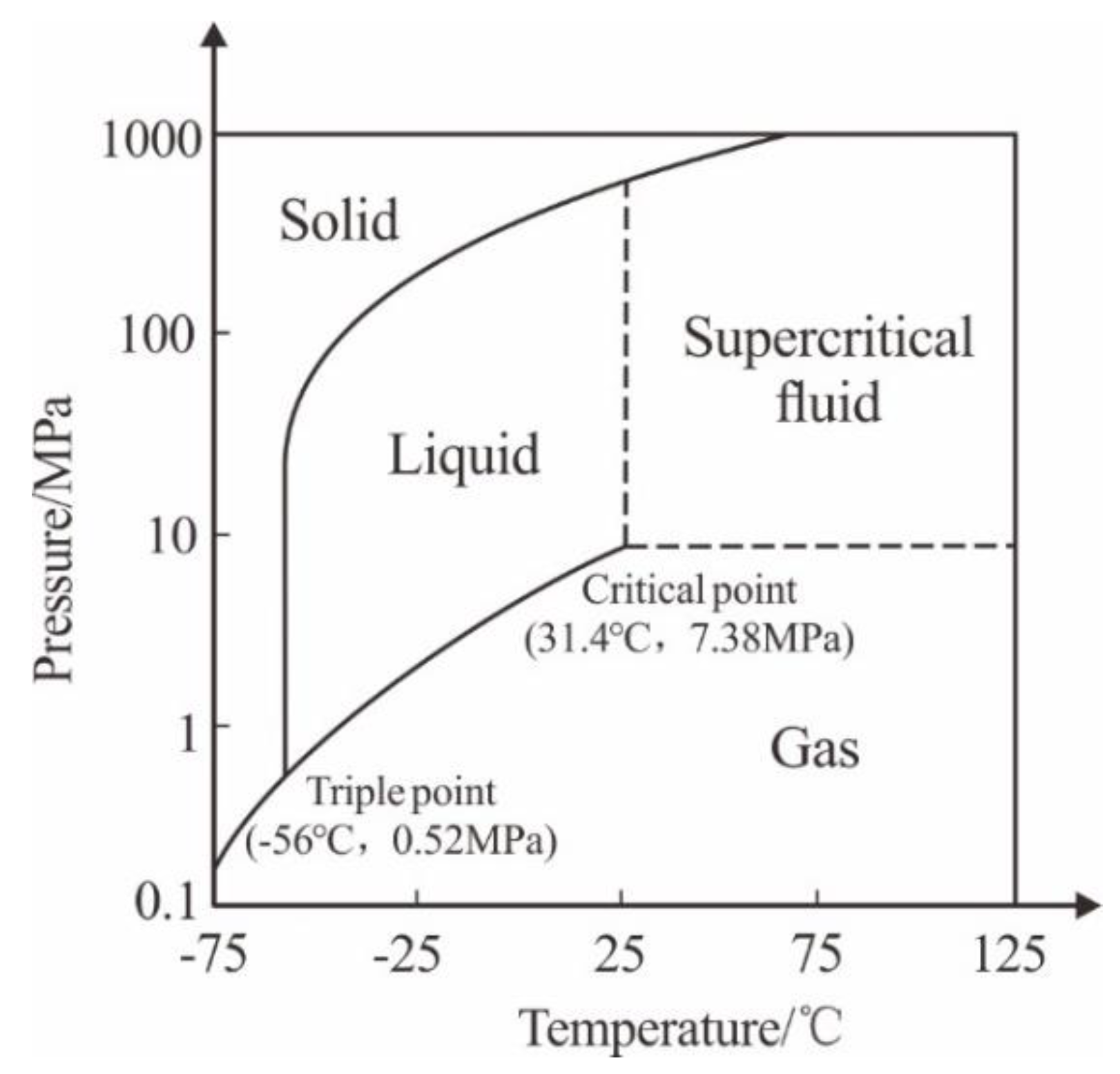

The power behind CO2 rock breaking comes from thermodynamics, not chemistry.

When liquid CO₂ absorbs heat from the chemical heater inside the tube, it transitions to a supercritical/gaseous state. This phase change drives a volume expansion exceeding 600 times the original liquid volume (MDPI Processes, 2022). Confined within the borehole, that generates pressures of 200–300 MPa — enough to rupture the pressure-relief disc (set to burst at 60–270 MPa, adjustable by disc thickness) and propel gas jets at hundreds of meters per second into the rock mass.

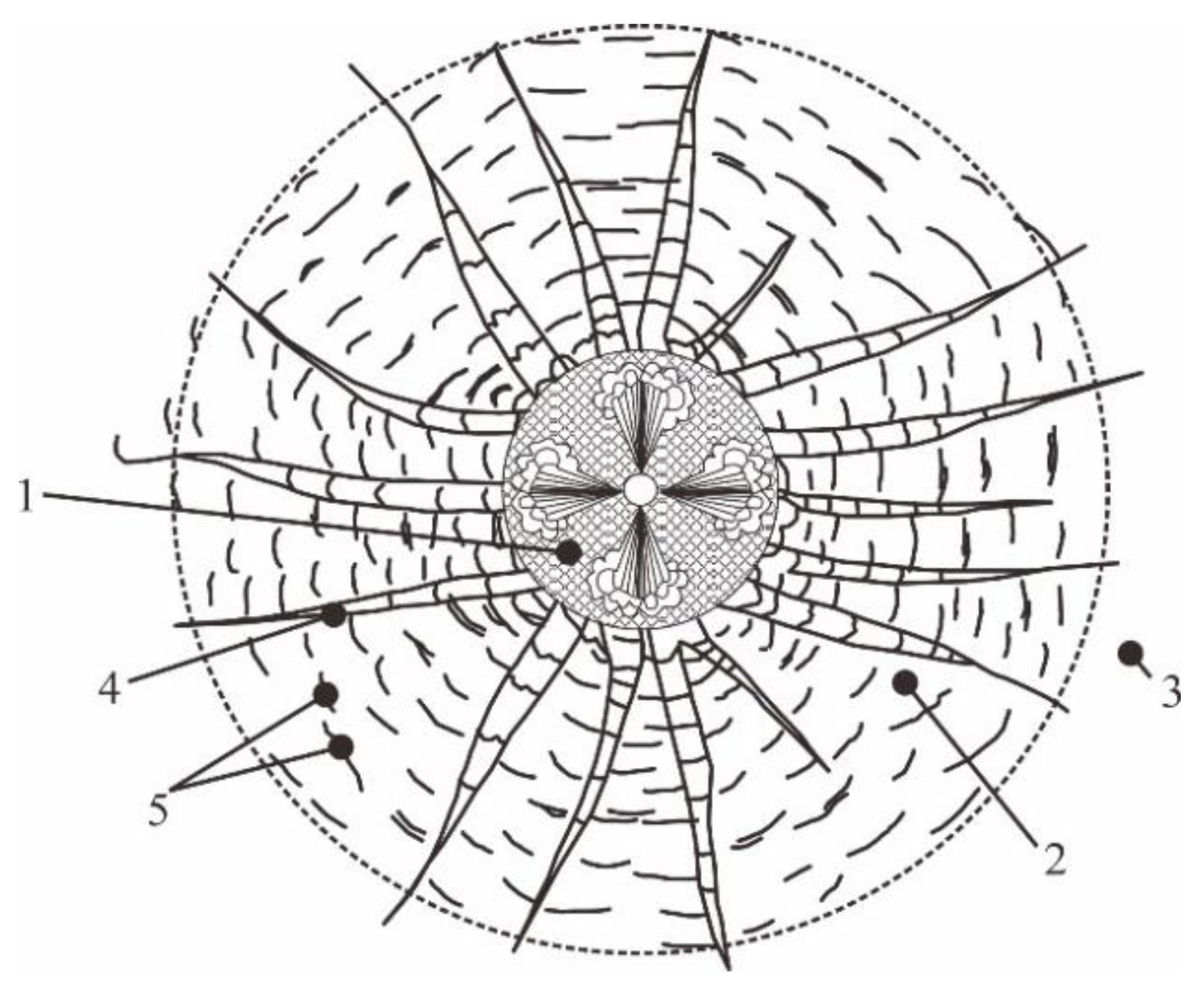

The fracturing mechanism itself is a two-stage process:

• Stage 1 — Dynamic stress wave. The initial pressure pulse creates a shock wave that generates primary radial cracks around the borehole.
• Stage 2 — Gas wedging. The high-pressure CO₂ gas penetrates into these newly formed cracks, propagating them outward until the rock mass fragments completely.

This two-stage mechanism produces more controlled fragmentation than single-pulse explosives. In field tests, 80% of post-fracturing debris falls within the 10–50 cm size range, often eliminating the need for secondary crushing.

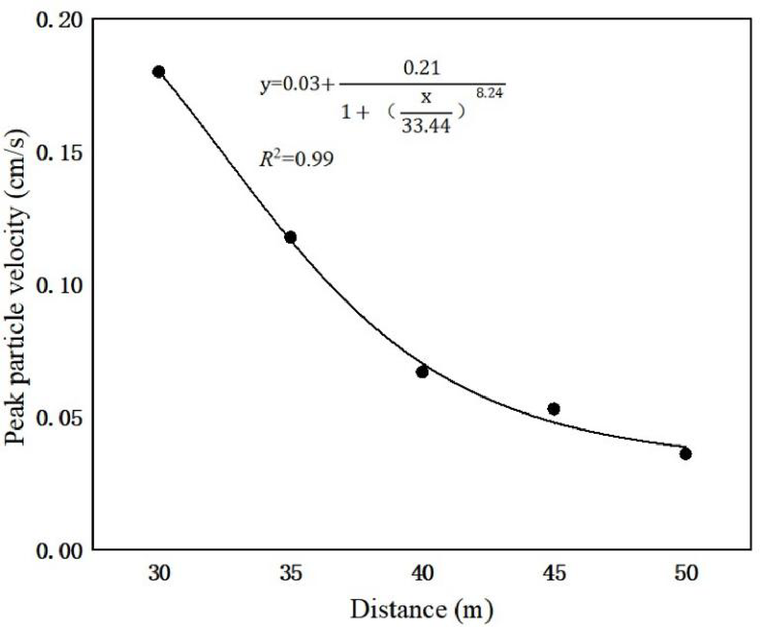

And the vibration? Field data from a mountain tunnel project near existing railway infrastructure measured peak particle velocity of just 0.18 cm/s at 30 meters — only 18% of the 1.0 cm/s safety threshold for fragile earth-timber structures (Scientific Reports, 2025). Conventional explosives at the same distance typically produce 2.61 cm/s — over 14 times more vibration.

CO2 Rock Breaking vs. Every Alternative: Which Method Is Right for You?

No rock-breaking method is perfect for every situation. The right choice depends on your rock type, site constraints, regulatory environment, and production targets. Here’s how CO2 rock breaking stacks up against the three main alternatives.

CO2 vs. Traditional Explosives

This is the comparison most project managers ask about first — and for good reason.

Where explosives win: Large-scale open-pit mining where vibration and flyrock aren’t constraints, and where high-volume bulk fragmentation is the priority.

Where CO2 wins: Any site within 100+ meters of structures, railways, pipelines, or communities. Any operation in gas-rich or coal mines. Any jurisdiction where blasting permits are delayed or denied.

Want to see a deeper dive on this comparison? Read our full analysis of explosives vs. liquid CO₂ →

CO2 vs. Hydraulic Splitting

Hydraulic splitting uses a wedge-and-feather system driven by hydraulic cylinders to split rock along its natural grain. It’s silent and vibration-free — but it’s slow.

Where hydraulic splitting wins: Precision demolition of concrete, urban sites where zero vibration is required, and applications where you need large, intact blocks.

Where CO2 wins: Mining and quarrying where production volume matters, hard or heterogeneous rock without clear grain structure, and projects where you need both speed and safety.

Explore our hydraulic splitting rod systems → for scenarios where silence and precision outweigh speed.

CO2 vs. Expansive Grout / Chemical Agents

Expansive grout (also called non-explosive demolition agent) is a cementitious powder mixed with water that expands as it cures, generating up to 18,000 psi of expansive pressure over several hours.

Let that sink in. Several hours. Per hole.

Where expansive grout wins: Small residential projects, occasional boulder removal, and sites where time is not a factor.

Where CO2 wins: Literally any production-scale operation. If you’re breaking more than a few cubic meters per day, the time savings alone justify the switch.

Decision Matrix: Choosing the Right Non-Explosive Method

CO2 Rock Breaking Equipment: What You Need to Know Before Buying

This is where most buyers get lost — model numbers, specs, and conflicting claims. Here’s what actually matters.

Key Components of a CO2 Fracturing System

A complete CO2 rock breaking setup has four integrated systems. The charging system loads liquid CO₂ into the fracturing tubes via storage tanks and filling machines. The blasting system is the core — fracturing tubes (reusable steel or disposable PPR), heating pipes, pressure-relief discs (adjustable burst threshold: 60–270 MPa), and energy-release nozzles. A monitoring system tracks temperature, pressure, and vibration in real time. And support accessories include compressors, wrenches, initiators, and wiring supplies.

Understanding Equipment Specifications

When you’re shopping for CO2 rock breaking equipment, the first decision is tube type — and that depends on your project scale.

Model 51 Fracturing Tube

Designed for underground mining and precision work:

Spec	Value
Tube Diameter	51 mm
Standard Length	1.2 m
CO₂ Capacity	0.6–0.8 kg
Equipment Weight	12 kg
Required Hole Diameter	50 mm

Model 108 Fracturing Tube

Built for open-pit mining and large-scale quarrying:

For operations that drill holes for CO2 tube insertion and require a faster way to handle the drilling phase, we offer excavator-mounted drill-split integrated machines (ZD1000–ZD2000 series). These combine drilling and hydraulic splitting in a single unit — complementary to the CO2 fracturing systems covered above. The ZD1500, for example, drills and splits up to 672 m³ per day, making it a strong pairing for mid-size CO2 fracturing operations.

Explore our complete carbon dioxide fracturing system → for detailed specifications and configuration options.

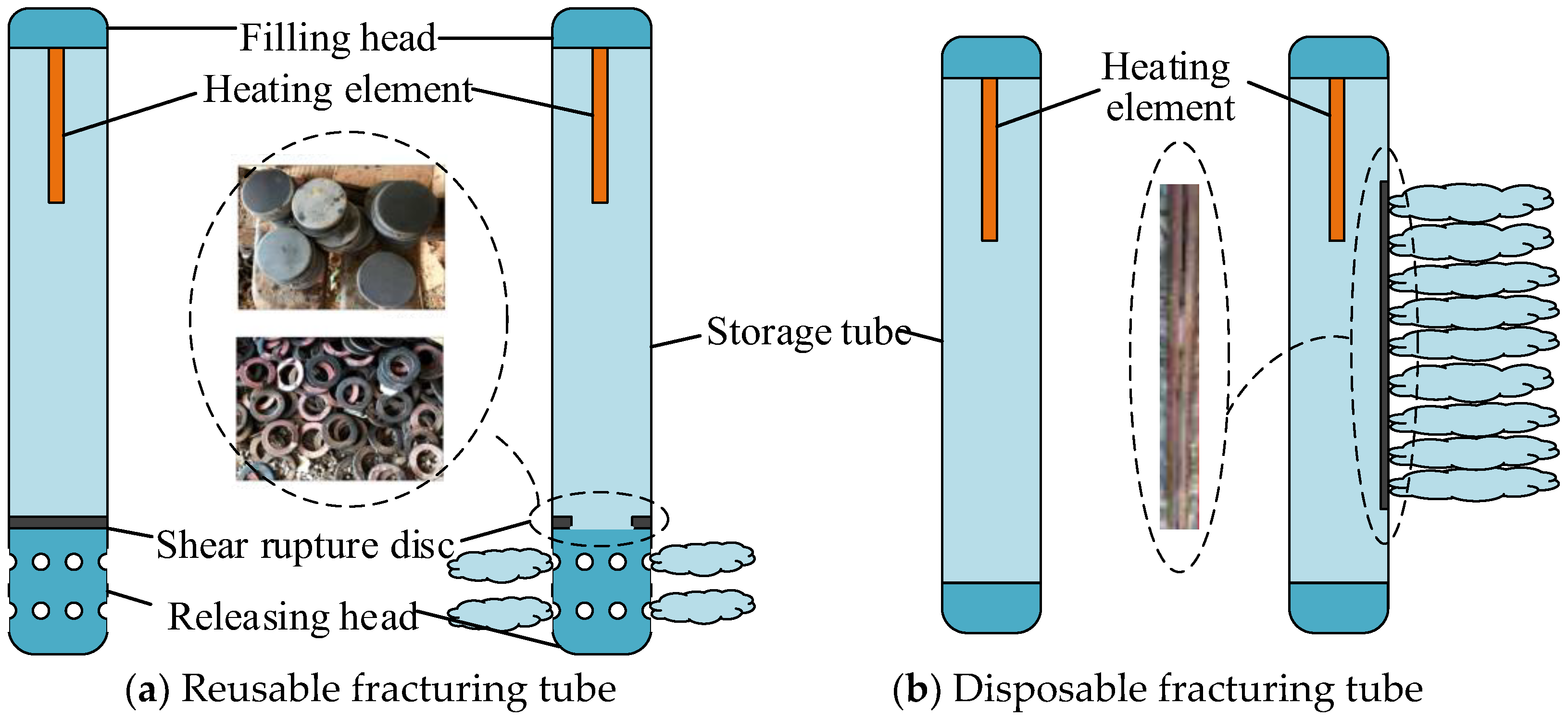

Reusable vs. Disposable Fracturing Tubes: Cost Comparison

This is one of the most consequential buying decisions you’ll make. Both systems work on the same physical principle, but the economics are very different.

The math is straightforward: If you’re running 200+ shots per month on an ongoing CO2 rock breaking operation, reusable tubes will recover their upfront cost within 2–3 months and deliver significant savings thereafter. If you’re on a short-term project in a region where blasting permits are virtually impossible to obtain, disposable tubes eliminate the regulatory barrier entirely.

Learn more about disposable CO₂ fracturing tubes → for permit-free operation.

Ready to evaluate which system fits your project? Our technical team can recommend the right configuration based on your rock type, production targets, and regulatory environment — contact us for a free consultation →

Real-World Applications: Where CO2 Rock Breaking Excels

Enough theory. Here’s where CO2 rock breaking actually earns its keep.

Mining & Quarrying

In mining and quarrying, CO2 rock breaking serves two critical functions: production blasting in areas where explosives are restricted, and selective extraction where stone quality matters. The controlled fragmentation preserves stone texture — a major advantage for dimension stone quarries where blast damage can destroy the value of entire blocks. The technology works in both open-pit and underground operations, with Model 108 tubes handling large-scale work and Model 51 tubes for tight underground headings.

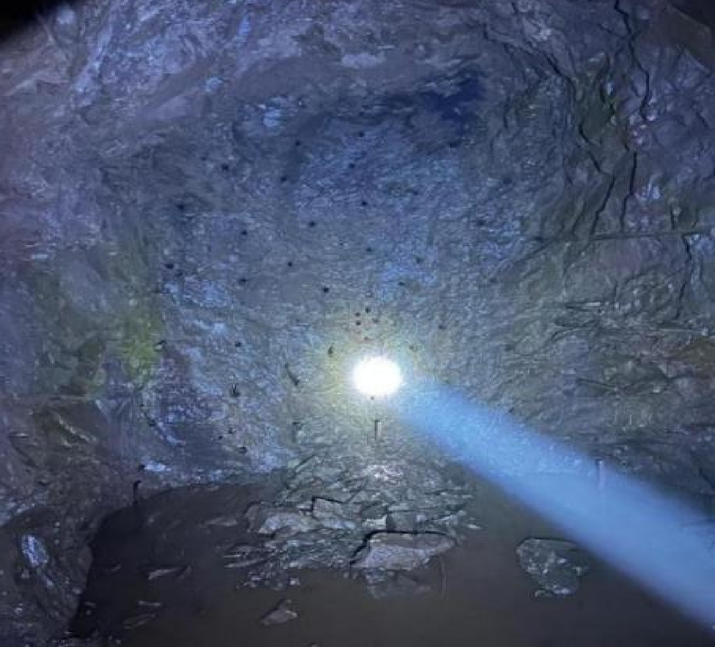

Tunnel Excavation

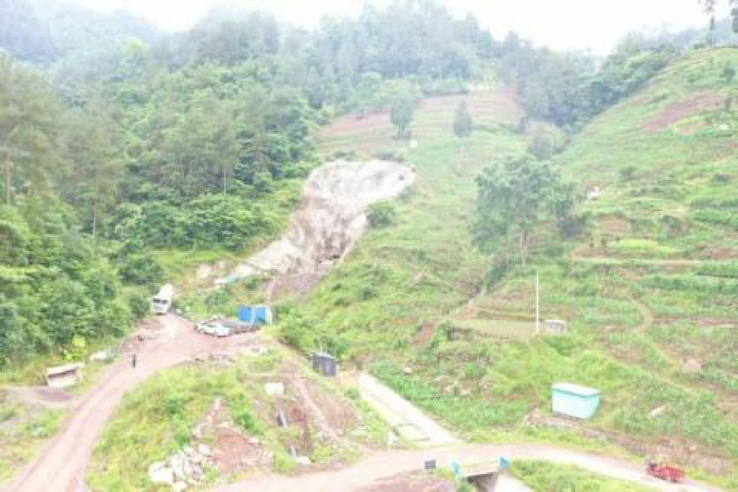

Tunnel projects near existing infrastructure are where CO2 fracturing truly shines. A Scientific Reports (2025) field study was conducted on a mountain tunnel adjacent to an operating railway. The results? Vibration at 30 m measured just 0.18 cm/s, structural displacement was under 3 mm, and the tunnel was completed with zero damage to the railway above. Conventional blasting would have been a non-starter.

A tunneling crew in Shenzhen, China faced a similar challenge during Metro Line 12 construction. They needed to excavate a ventilation shaft within 15 meters of an active subway tunnel. Blasting was forbidden. They deployed a CO2 rock breaking system and maintained peak particle velocity below 2.5 cm/s throughout the project — well within the urban tunnel safety standard — while maintaining production rates that kept the project on schedule. See more project case studies →.

Read more about tunnel excavation without explosives →

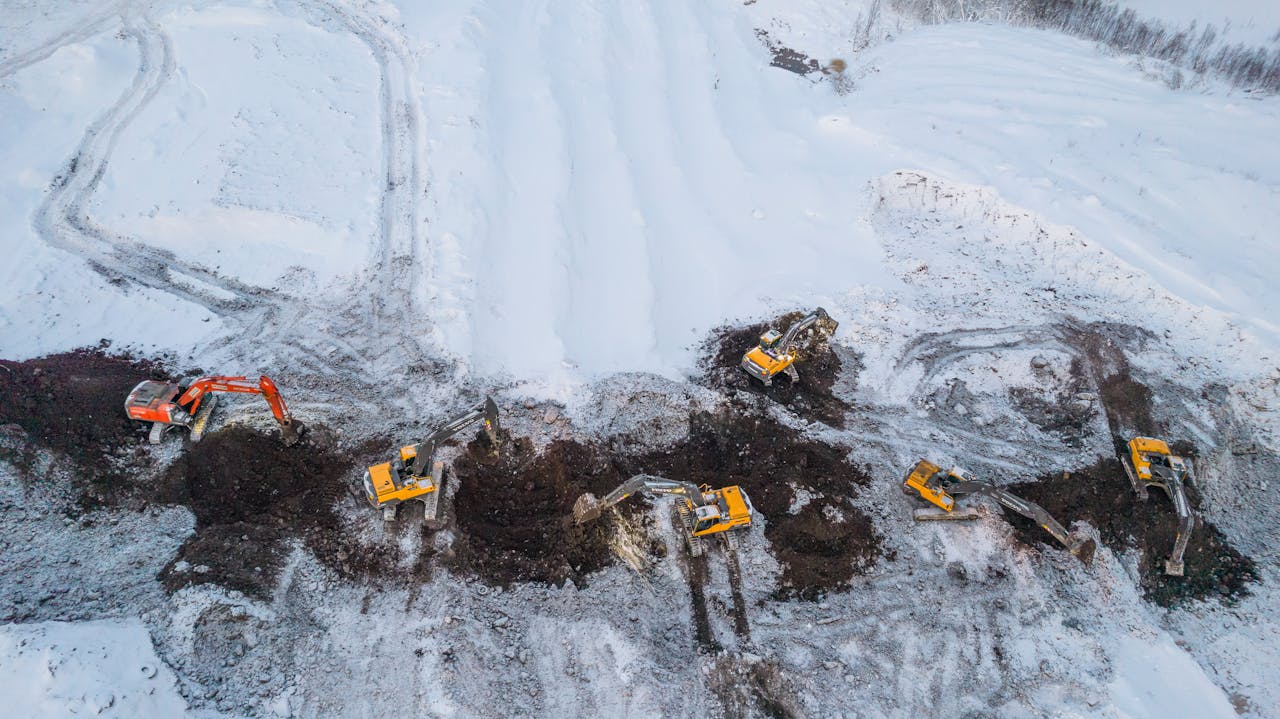

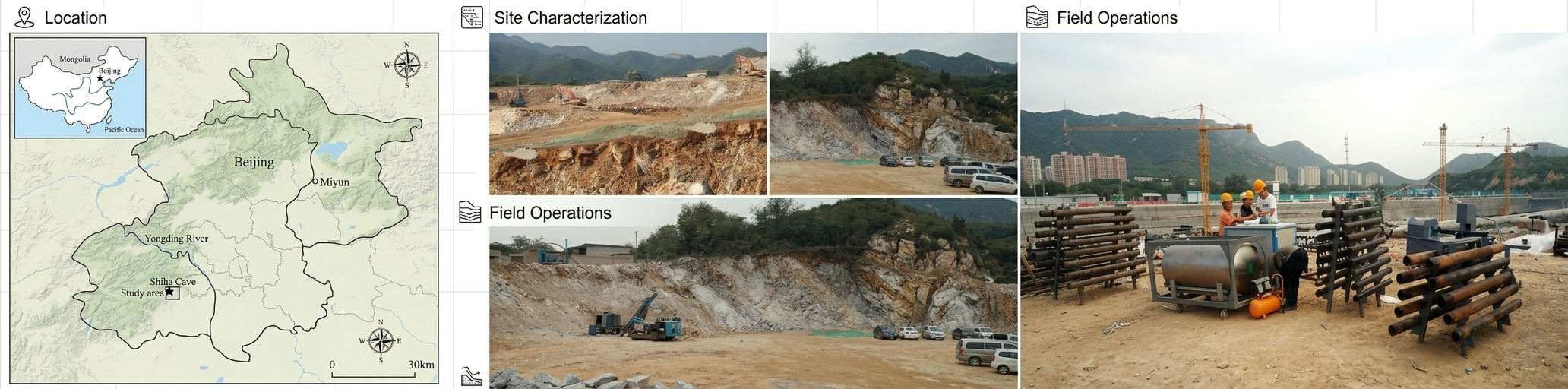

Urban Construction & Demolition

In cities across the Middle East and South Asia, construction sites are increasingly hemmed in by existing buildings, utilities, and occupied structures. CO2 rock breaking’s 5-meter flyrock zone and low-vibration profile allow excavation work that would be impossible — or illegally loud — with traditional methods. Foundation excavation, basement expansion, and pipeline trenching in dense urban environments are all viable applications.

Specialized Scenarios

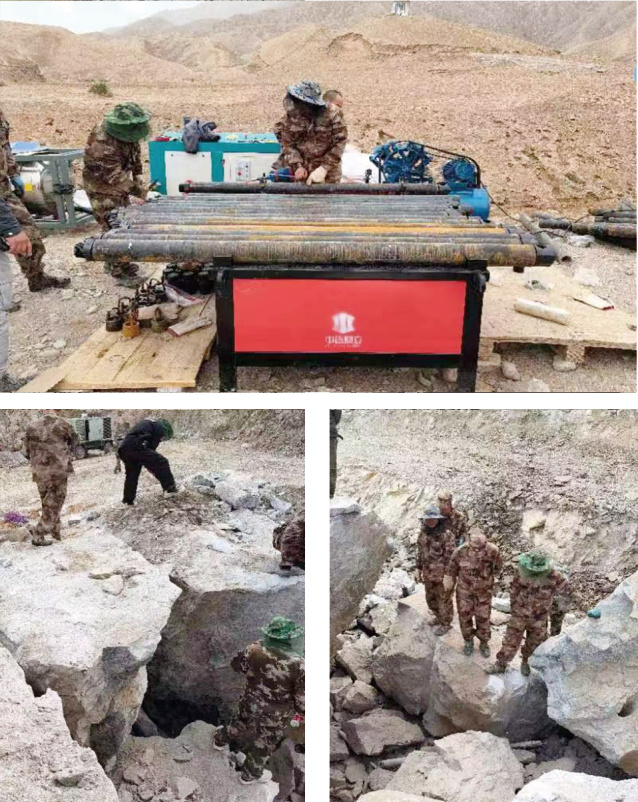

• Gas-rich / coal mines: CO2 is inert and spark-free. The technology is intrinsically safe in environments where any ignition source is catastrophic. Coal mines in China’s Shanxi province have adopted CO2 fracturing as standard practice for pressure relief and excavation in gassy seams. See our underground mining applications → for more on this.
• Cultural heritage & historical sites: Where vibration must be minimized to protect fragile structures, CO2 fracturing’s sub-0.2 cm/s vibration profile at 30 m makes it one of the few viable options.
• Underwater operations: Both reusable and disposable tube systems can be configured for submerged rock breaking, useful for port construction, bridge foundations, and underwater pipeline installation.

Cost Analysis & ROI: Is CO2 Rock Breaking Worth the Investment?

Let’s talk money. Because the real question isn’t “does it work?” — the research is clear on that. The real question is “does it make financial sense for my operation?”

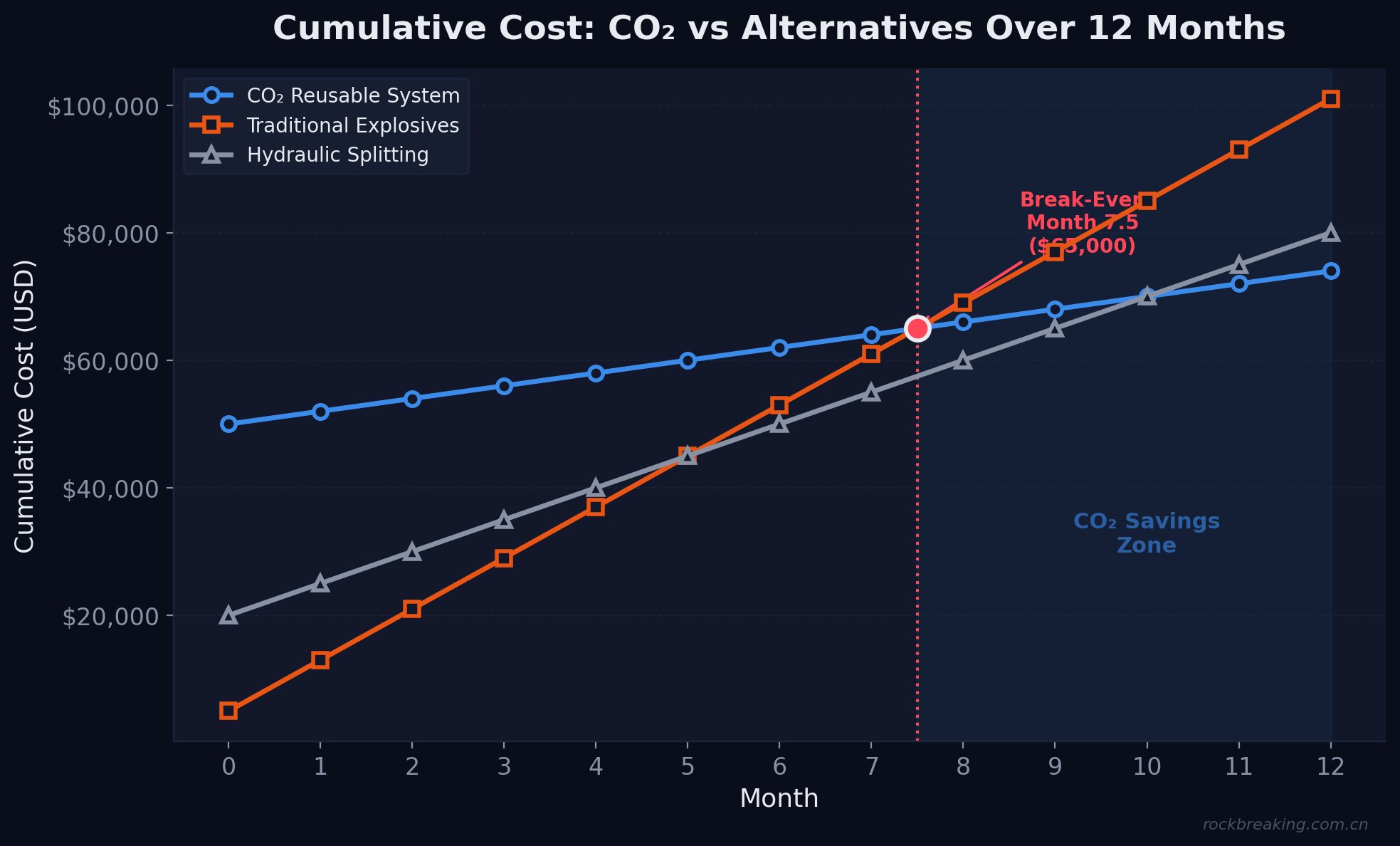

Capital Expenditure vs. Operating Costs

CO2 rock breaking shifts costs from operating expense to capital expense. Here’s the typical breakdown:

For a mid-size quarry running 20–30 shots per day, CO₂ rock breaking with reusable tubes brings consumable costs down to roughly $0.40–0.80 per cubic meter of broken rock — compared to $1.5–4/m³ for single-use tubes or $5–15/m³ for equivalent explosive charges once you account for permits, storage, and licensed blasting crews.

Hidden Savings You Might Overlook

The line-item cost comparison doesn’t capture the full financial picture. But the real savings aren’t on the spreadsheet:

• Approval timeline: Blasting permits in urban or regulated areas can take weeks to months. CO2 rock breaking typically requires only standard excavation permits — approval in days. If your project is losing $5,000–$10,000 per day waiting for a blasting license, the math writes itself.
• Equipment reuse value: Reusable fracturing tubes hold residual value even after hundreds of cycles. They can be reconditioned or resold, unlike consumed explosives which represent 100% sunk cost.
• Stone yield improvement: In dimension stone quarrying, CO2 fracturing preserves stone texture that blast damage destroys. One quarry operator reported a 20–30% improvement in saleable block yield after switching — a direct revenue increase that dwarfs the equipment cost.
• Insurance premium reduction: Several operators report lower liability insurance premiums after eliminating explosives from their sites. No explosives storage, no detonation risk, no flyrock liability.
• Community relations: Reduced noise, vibration, and dust mean fewer complaints, fewer work stoppages, and fewer regulatory inspections. In jurisdictions where community objections can halt operations, this alone can justify the switch.

Want to run the numbers for your specific project? Our team can provide a customized ROI analysis based on your rock type, production targets, and local regulations — request your free analysis →

Safety, Compliance & Certification

Safety isn’t a feature — it’s a regulatory requirement. Here’s what you need to know about CO2 rock breaking from a compliance perspective.

Why CO2 Fracturing Is Not Classified as Explosives

CO2 fracturing systems are not classified as explosives because:

• There is no chemical detonation. The energy source is a physical phase change, not a combustion reaction.
• The system is spark-free. Liquid CO₂ is inert, and the heating element operates within the sealed tube — no external ignition risk.
• Certified testing confirms zero sensitivity to impact, friction, flame, and static electricity.

This classification has direct operational implications: no explosive storage magazines, no licensed blasters, no specialized transport, and in most jurisdictions, no blasting permit.

International Certifications to Look For

When evaluating CO2 rock breaking equipment, verify these certifications:

• CE marking — Required for sale within the European Economic Area
• ISO 9001 — Quality management system certification
• SGS testing reports — Independent third-party verification of safety and performance claims

Our equipment carries all three, along with 20+ years of manufacturing track record across 1,000+ projects in 50+ countries.

Safety Protocols & Best Practices

Even though CO2 rock breaking is not classified as explosives, it still generates high pressures and must be operated with proper protocols. The core safety advantages:

• Zero spark risk — liquid CO₂ is inert; no ignition source
• Flyrock under 5 m — vs. 50+ m with explosives
• Vibration at 0.18 cm/s — 82% below strictest safety threshold
• No toxic gases — primarily CO₂ (flame-retardant, inert)
• No blasting permit required — not classified as explosives

Operational protocols (Only applicable to disposable fracturing tubes):

• Maintain minimum standoff distances: ≥50 m for disposable tubes, ≥100 m for reusable systems

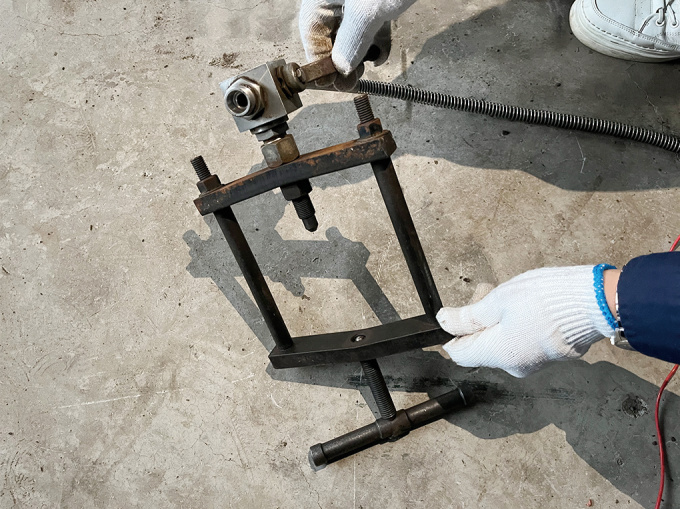

• Always measure tube resistance before installation (tolerance: ±0.5 Ω)
• Use proper stemming to contain gas pressure — never fire an unstemmed hole
• Ventilate enclosed spaces after fracturing before re-entry
• Conduct gas detection checks in underground environments before personnel return
• Train all operators on system-specific procedures — minimum 1 day certification course

Implementation Guide: Getting Started with CO2 Rock Breaking

Deploying a CO2 rock breaking system requires proper site preparation. Here’s your roadmap.

Site Assessment Checklist

Before you invest in any equipment, verify these factors:

• Rock type and hardness — CO2 fracturing works on all rock types, but hole spacing and tube selection vary with compressive strength
• Borehole accessibility — Confirm your drill can achieve 130–140 mm diameter at 6–8 m depth (for Model 108 tubes)
• Proximity to sensitive structures — Measure distances to buildings, railways, pipelines, and utilities
• Regulatory environment — Confirm local classification of CO2 fracturing (non-explosive in most jurisdictions, but verify)
• CO₂ supply — Ensure reliable liquid CO₂ supply in your region (standard industrial gas, available globally)
• Power supply — Confirm adequate electrical supply for the charging system and initiator
• Production targets — Calculate daily volume requirements to select the right tube model and quantity

Training & Support Requirements

CO2 rock breaking requires less specialized training than explosive blasting, but proper instruction is non-negotiable. Expect:

• 1–2 day on-site training for operators and safety officers
• Annual recertification recommended
• Remote technical support available 24/7 from established manufacturers
• Spare parts and consumables — ensure your supplier can deliver pressure-relief discs, heating elements, and sealing components within your project timeline

The right manufacturer won’t just sell you equipment — they’ll provide ongoing technical support, on-site training, and rapid spare parts delivery. With 20+ years of manufacturing experience, 1,000+ completed projects, and equipment operating in 50+ countries, our support infrastructure is built for the realities of remote mining and construction sites.

Market Outlook: Non-Explosive Rock Breaking Goes Mainstream

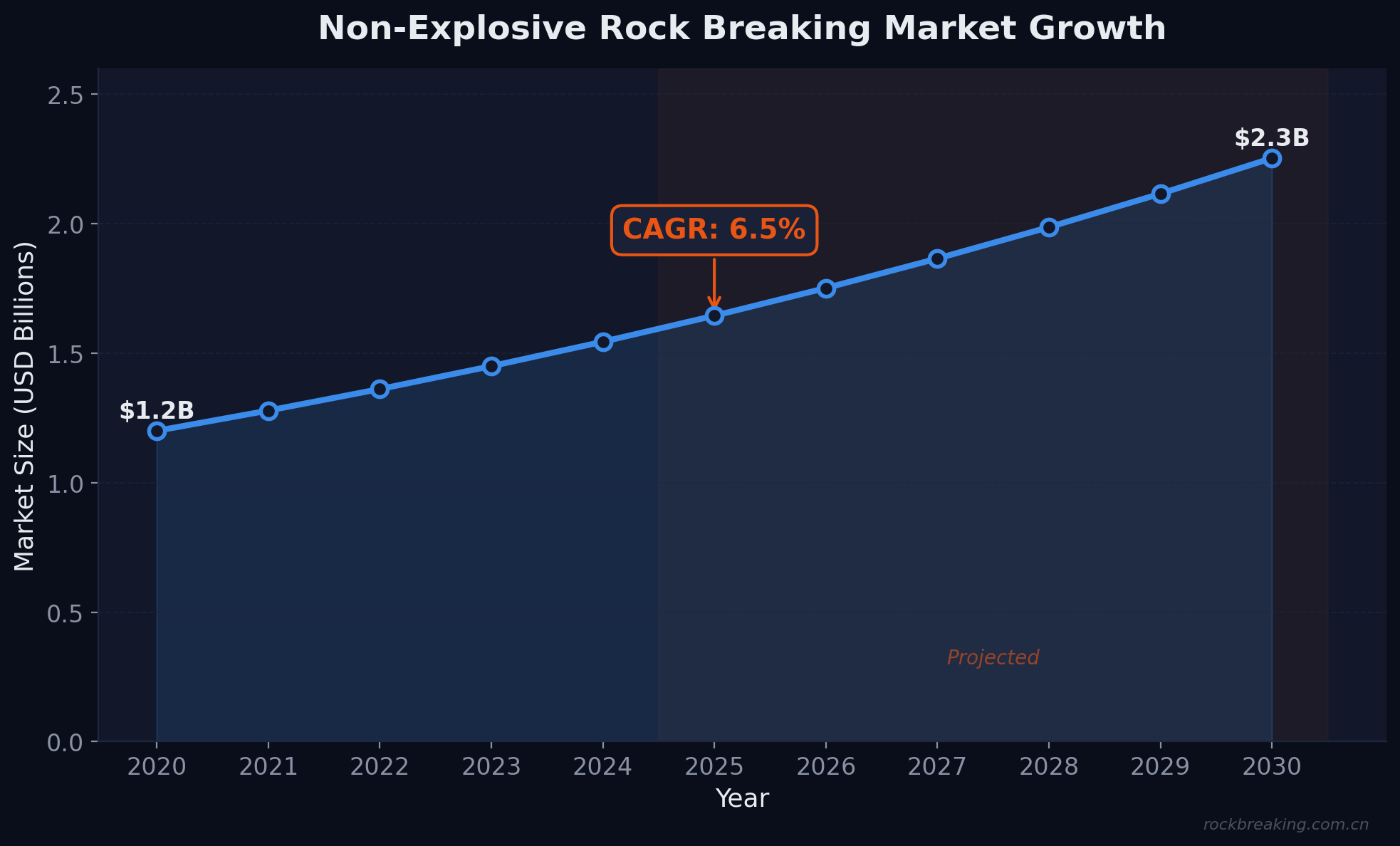

The non-explosive rock-breaking market is growing at 6.5%+ CAGR, driven by tightening safety regulations across the Middle East, South America, Africa, and South Asia. As urbanization pushes construction closer to existing structures and communities, demand for low-vibration, low-flyrock alternatives to traditional explosives will only accelerate.

Conclusion

That limestone quarry in Antioquia? Still running. Four years, zero permit delays, zero community complaints, steady production every shift. That’s not a marketing story — that’s what CO2 rock breaking delivers when you match the right equipment to the right job.

The numbers don’t lie. Vibration at 30 m is 0.18 cm/s — 82% below the strictest safety threshold. Flyrock stays under 5 m. Zero spark risk. These are measured data, not claims. Reusable tubes bring rock-breaking costs under $0.70 per cubic meter. Eliminating blasting permits saves weeks of downtime. Better stone yield directly increases revenue. And the regulatory path is clear: CO2 fracturing is not classified as explosives in most jurisdictions. Faster approvals, simpler logistics, lower compliance costs.

From precision Model 51 tubes to heavy-duty Model 108 systems, from reusable steel to permit-free disposable tubes, from standalone systems to excavator-integrated drill-split machines — there’s a CO2 rock breaking configuration for your operation. The market agrees: at 6.5%+ CAGR, non-explosive rock breaking is going mainstream, driven by the same safety and environmental regulations that are making your blasting permits harder to get.
